Piping and Outfitting
Shipcad AS provides full package of work documentation for manufacturing and installation of piping, based on 3D model:

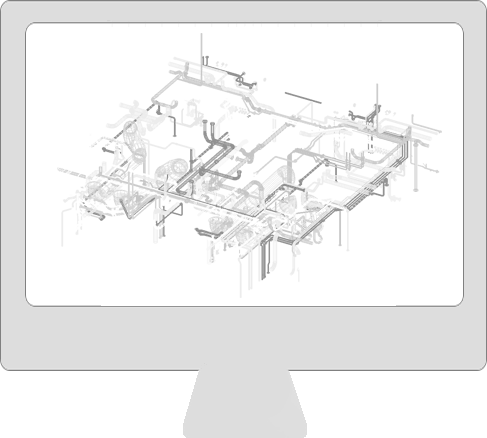

- 3D model of piping systems in different formats;
- Pipes isometric drawing;
- Assembly plans;
- Pipe arrangements/Coordination drawings;
- Equipment layouts;
- Cable tray arrangements;
- Pipe penetration drawing;
- System calculations;
- Window, Door, Insulation Plans, Accommodation Arrangements
- Stairs, ladders, railings drawings
- Rescue plans, lifesaving arrangements
- Workshop ship interior drawings for floors, linings, ceilings etc.
